Cylinders Key Systems

We have various types of cylinders key systems that will suit most of the application from regular household to commercial area even construction sites.

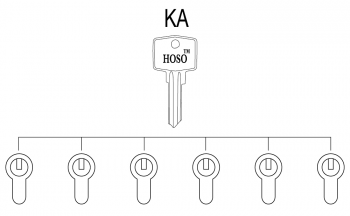

Key Alike System - KA

This system allows for a number of cylinders to be operated by the same key it is ideally suited for residential and commercial applications, such as front and back doors.

key-alike-system
Key Alike System Illustration Diagram
master-key-system
Master Key System

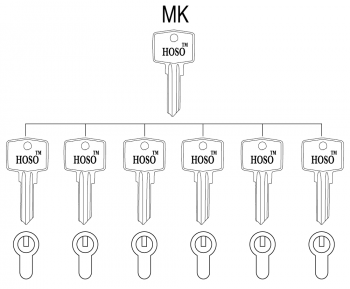

Master Key System - MK

A master-keyed system involves each lock having its own individual key which will not operate any other lock in the system and all locks can be operated by single master-key. This system usually applied in commercial use case.

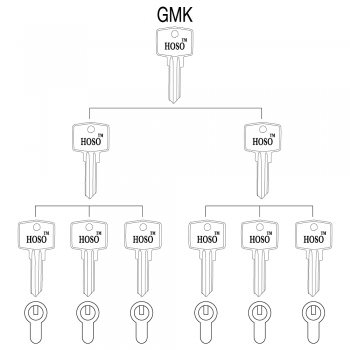

Grand Master Key System - GMK

This is an extension of the master-keyed system where each lock has its own individual key and the locks are divided into 2 or more groups. Each lock group is operated by a master key and the entire system is operated by one grand master-key. This is ideally utilized in complex commercial systems.

grand-master-key-system
Grand Master Key System Illustration Diagram
construction-keyed-system
Construction Keyed System Illustration Diagram

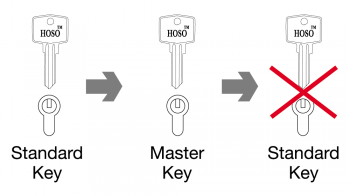

Construction Keyed System - CMK

This keying option allows multiple cylinders on construction job sites can to be temporarily prepared for operation by a single key. While under construction, one master key operates all of the cylinders on the site. Then, when a tenant moves in a special change-over key is inserted, which alters key access, disallowing the construction master key to ever work again and preparing the cylinder for operation by the user key only
